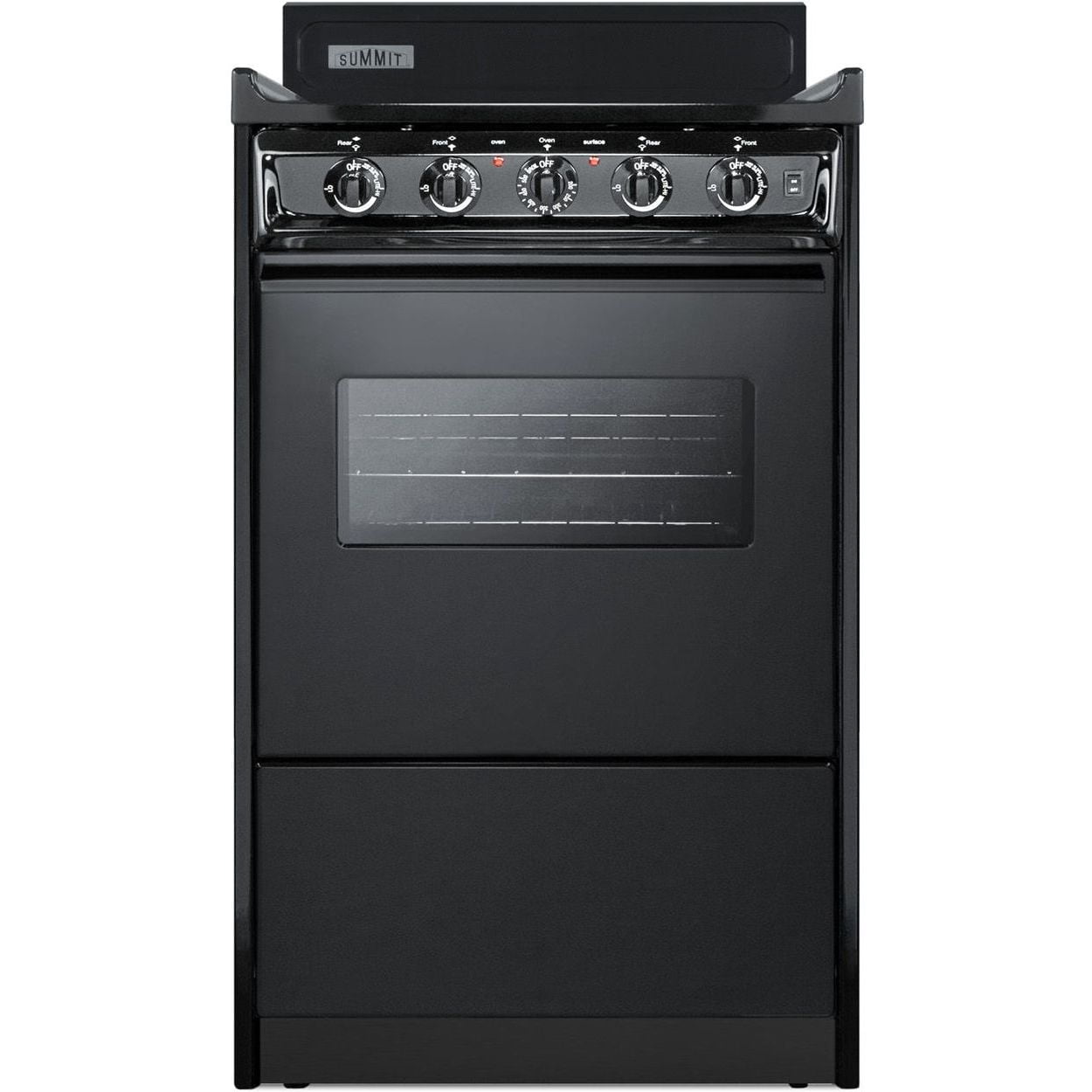

Summit Appliance TEM110CW 20 in. Electric Range with Oven Window, Interior Light & Lower Storage Compartment, Black
Product details
| Management number | 230268429 | Release Date | 2026/06/18 | List Price | US$362.74 | Model Number | 230268429 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>At just 20" wide, the TEM110CW brings quality cooking to apartments and other small kitchens. All controls are front-located to meet ADA guidelines for accessible use. The oven includes a window on the door and an interior light to make it easy to monitor your cooking. This unit includes a lower storage compartment ideal for keeping pots and pans out of the way. An anti-tip bracket is included for added safety. The interior includes two oven racks. The TEM110CW is constructed from porcelain and steel for maximum durability. </p><b>Features</b><ul><li>20" wide electric range</li><li>Designed to meet ADA guidelines for improved accessibilty</li><li>Lower storage area for added convenience</li><li>Recessed oven door for cabinet protection</li><li>Includes an oven window and light for easier cooking</li></ul><b>Specifications</b><ul><li><b>Finish:</b> Black</li><li><b>Door:</b> Black</li><li><b>US Electrical Safety:</b> CSA</li><li><b>Voltage/Frequency:</b> 220 V AC/60 Hz</li><li><b>Oven Capacity:</b> 2.46 cu.ft. (70 L)</li><li><b>Cooktop Surface:</b> Porcelain</li><li><b>Element Type:</b> Coils</li><li><b>Number of Elements:</b> 4</li><li><b>Element #1 Size:</b> 6.0" (15 cm)</li><li><b>Element #1 Wattage:</b> 1200</li><li><b>Element #2 Size:</b> 6.0" (15 cm)</li><li><b>Element #2 Wattage:</b> 1200</li><li><b>Element #3 Size:</b> 6.0" (15 cm)</li><li><b>Element #4 Size:</b> 8.0" (20°Cm)</li><li><b>Element #4 Wattage:</b> 2100</li><li><b>Burner Controls:</b> Dial</li><li><b>Oven Controls:</b> Dial</li><li><b>Oven Light:</b> Yes</li><li><b>Backguard:</b> Yes</li><li><b>Cleaning Type:</b> Manual</li><li><b>Oven Rack Qty:</b> 2</li><li><b>Oven Window:</b> Yes</li><li><b>Oven Interior Height:</b> 14.0" (36 cm)</li><li><b>Oven Interior Width:</b> 16.0" (41 cm)</li><li><b>Oven Interior Depth:</b> 19.0" (48 cm)</li><li><b>Storage Compartment:</b> Yes</li><li><b>Broiler Location:</b> Inside Oven</li><li><b>Oven Door:</b> Black</li><li><b>Country of Origin:</b> USA</li><li><b>Dimension:</b> 40.0" H x 20.0" W x 24.0" D</li><li><b>Weight:</b> 140 lbs</li></ul>- SKU: SMMA1439
Designed and constructed domestically
Apartment-sized width offers all the functionality you need in a smaller footprint
Shallower fit is ideal for L-shaped and galley kitchens
Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Three standard 6" and one large 8" element
Each element includes a removable chrome pan for easier cleaning
Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Keep pots and pans inside the lower compartment for easy storage
Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor
Smart design limits the depth and protects adjacent cabinets
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Solid construction built to hold up to everyday use
All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Allows for easier cleaning as needed
Two-piece porcelain broiler tray with grease well
Included for user installation to help prevent tipping
Compatible with standard 40 amp 3 or 4-wire range cords
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
| Brand | Summit Appliance |
|---|---|
| Cooking range type | Freestanding Ranges |
| Color type | Black |
| Number of burners | 4 |
| Volume capacity | 2.46 cu.ft. |
| Oven width | 16.0â |
| Oven cleaning method | Manual-Clean |
| Range & cooktop burner type | Coil |
| Rec. use | Residential |
| Front panel finish | Black |
| Top finish | Black |
| Product name | Summit Appliance TEM110CW 20 in. Electric Range with Oven Window, Interior Light & Lower Storage Compartment, Black |
| Model | TEM110CW |
| Power type | Corded Electric |
| Assembled product height | 40.00 in |
| Assembled product weight | 161 lb |
| Number of cooking racks | 2 |
| Number of elements | 4 |
| Oven feature | Broiler |
| Control type | Knobs |
| Control location | Front Control |
| Control switch type | Mechanical |
| Head material | porcelain, steel |
| Amps | 40.0 Amps |
| Volts | 220.0 V |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Maximum cooking element size | 8.0° |
| Minimum cooking element size | 6.0 in |
| Maximum total wattage | 2100 W |
| Accessories included | Anti-Tip Bracket |
| Remote controlled | N |
| Is smart | N |
| Number of positions | 2 |
| Internal depth (main oven) | 19.0in |
| Internal height (main oven) | 14.0Â in |
| Internal width (main oven) | 16.0Â in |
| State chemical disclosure | None |
